How to Add an Aerator to a Pull-Out Faucet

Why Pull-Out Faucets Need a Different Aerator Approach

In most cases, you can add or replace an aerator on a pull-out faucet, but only after you identify the spray head connection. Some pull-out faucets accept a standard threaded aerator, while others need a drop-in insert, a brand-specific cartridge, or an adapter ring. If the spray head has no usable threads, forcing a standard aerator onto it can damage the plastic housing or cause leaks.

Pull-out faucets look simple from the outside, but the spray head at the end of the hose changes the whole job. I have seen plenty of people assume they can buy any standard faucet aerator, screw it on, and call it done. That works on some fixed spouts. It usually does not work on a pull-out faucet.

The reason is basic. Pull-out spray heads are often built around a removable spray face, a hidden insert, or a manufacturer-specific connection. Some are standard-threaded. Others need an adapter ring. A few do not expose a useful aerator point until you remove the spray face.

In the U.S., the federal maximum flow rate for kitchen faucets and kitchen replacement aerators is 2.2 gpm at 60 psi. I treat that as the upper limit, not always the best default. For many pull-out kitchen faucets, a 1.5 to 1.8 gpm insert can still feel comfortable if the spray pattern is well designed, but you should always check local requirements and the faucet manufacturer’s specifications before choosing a replacement.

That matters because a pull-out faucet is usually used for rinsing, pot filling, and quick cleanup. You want better flow control, but you do not want to turn the faucet into a weak trickle. Honestly, that is the balance I look for first.

There is one more wrinkle. A pull-out head moves. If the part is the wrong shape, it can loosen faster, rub against the housing, or spray unevenly once the hose gets pulled back and forth. So before I buy anything, I want to know exactly what kind of head I am dealing with. That is the part people skip, and it is usually the part that bites them later.

Identifying Your Pull-Out Faucet’s Aerator Type

The first thing I do is figure out what I am actually dealing with. If you skip this step, you can waste time buying the wrong part three times in a row.

A pull-out faucet usually falls into one of three connection types:

1. a non-standard spray head that needs an adapter or replacement spray face

2. a drop-in aerator or cartridge inside the spray face

3. a recessed threaded aerator hidden inside the outlet

Drop-In, Hidden, or Non-Standard Aerator?

Pull-Out Faucet Aerator Types and Matching Solutions

What You See on the Spray Head	Likely Aerator Type	What You May Need	Important Note
A removable spray face with small slots, grooves, or a visible insert	Drop-in aerator or cartridge	Replacement insert or aerator cartridge	Remove the spray face carefully and match the old insert size before buying.
A recessed opening with hidden threads inside the outlet	Hidden threaded aerator	Male threaded aerator or aerator key	Use the correct removal key instead of forcing it with pliers.
Threads on the outside of the outlet	External-thread spray head	Female aerator	Check the thread size before ordering a replacement.
A smooth outlet with no visible threads	Non-standard spray head	Adapter ring, snap-on attachment, or replacement spray face	Do not force a standard aerator onto plastic or sealed parts.
A branded spray head with a unique face design	Manufacturer-specific insert	OEM insert or compatible adapter	Check the faucet brand and model if possible.

A drop-in insert or aerator cartridge sits behind the spray face. Depending on the spray head design, it may come out with an aerator key, a small removal tool, or fine tweezers. Avoid grabbing the chrome or plastic face directly with bare pliers, because it can scratch the finish or deform the housing. A hidden threaded aerator looks more like a recessed insert. A few pull-out spray heads do not show a normal aerator at all until you remove the face plate.

If the spray head has visible slots, flats, or grooves, that is your clue that it was designed for removal. If the end looks smooth and sealed, you may be dealing with a non-standard assembly instead. This is also where people mix up a pull-out kitchen faucet and a pull-down model. They can look similar from a distance, but the service point is not always the same.

How to Check for Standard Threads

Look closely at the end of the spray head. Look at the threads on the spray head outlet, not on the new aerator. If the outlet has threads on the inside, it usually accepts a male aerator with outside threads. If the outlet has threads on the outside, it usually accepts a female aerator with inside threads.

That sounds obvious, but on a pull-out faucet it is easy to misread the shape because the spray face is often surrounded by plastic or chrome trim. I always wipe the head clean first so I can see the edges clearly. I also check whether the finish is damaged, because a nicked edge can make a good part look like a bad fit.

When the Spray Head Needs an Adapter Instead

If there are no usable threads, do not force a standard aerator onto it. That usually ends in stripped plastic, a loose fit, or a leak that shows up later.

In that case, the right fix is often an adapter ring, a replacement spray face, or a universal attachment made for non-standard heads. I would rather spend five minutes confirming compatibility than spend an hour cleaning up a bad install.

Choosing the Right Aerator Product for Your Pull-Out Faucet

Once I know the connection style, I choose the part based on the actual faucet, not the package label. “Universal” is a nice word on a box, but it still needs to fit.

If you are shopping for a faucet aerator, think in terms of connection first and flow second. The wrong thread will beat the right flow rate every time. I sort out the fit before I worry about flow.

Threaded Aerators for External and Internal Mounts

If your pull-out spray head has standard threads, this is the cleanest option. You can usually install the aerator by hand, then snug it down gently.

Threaded aerators are a good choice when you only want a simple flow change and the spray head is already in good condition. It is the simplest path, and usually the least frustrating one.

Drop-In Cartridge Aerators for Spray Heads

Some pull-out spray heads use a cartridge-style insert instead of a screw-on aerator. In that case, you remove the spray face, swap the insert, and reinstall the face.

This is the path I see most often when the faucet was built with service in mind. It is neat, but it only works if the spray head was designed to be opened. If you are not sure, I check the inside of the head before I touch anything else.

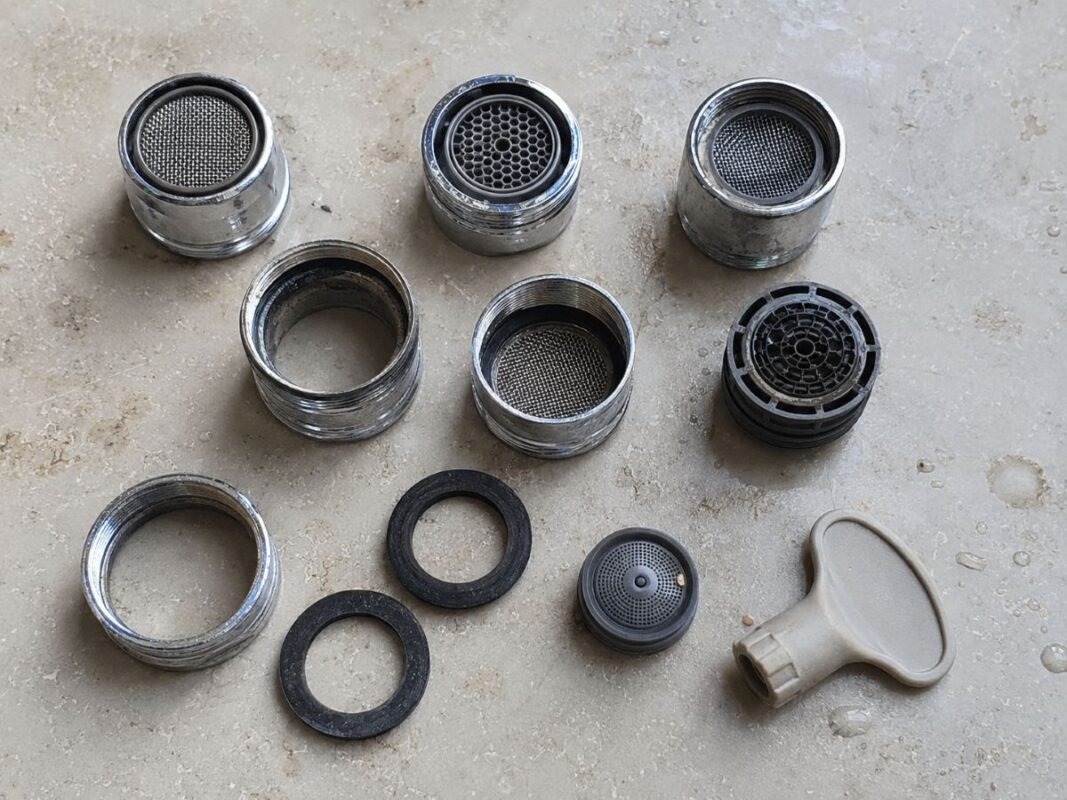

Universal Adapter Rings and Snap-On Options

If the faucet has odd dimensions or no standard threads, an adapter ring may save the job. Snap-on attachments can work on some non-standard outlets, but they are not my first choice for a pull-out faucet. Because the spray head moves in and out of the faucet body, a loose snap-on part can shift, leak, or rub against the dock. I would only use one if it matches the outlet diameter, locks securely, and does not interfere with the spray head returning to its holder.

Plumbing Supply points out that some faucets are oddly sized and may need an adapter to change the threading or get a proper fit. Their guide also notes that aerators come in different flow styles, including aerated, spray, and laminar.

When I am not sure whether I need an aerator adapter or a replacement insert, I compare the old part to the new one side by side. That is slower, but it beats a return trip.

Sizing, Measuring, and Gathering Tools for Your Aerator

I do not install anything until I have measured the head and checked the thread style. This is where people usually guess, and guessing is expensive.

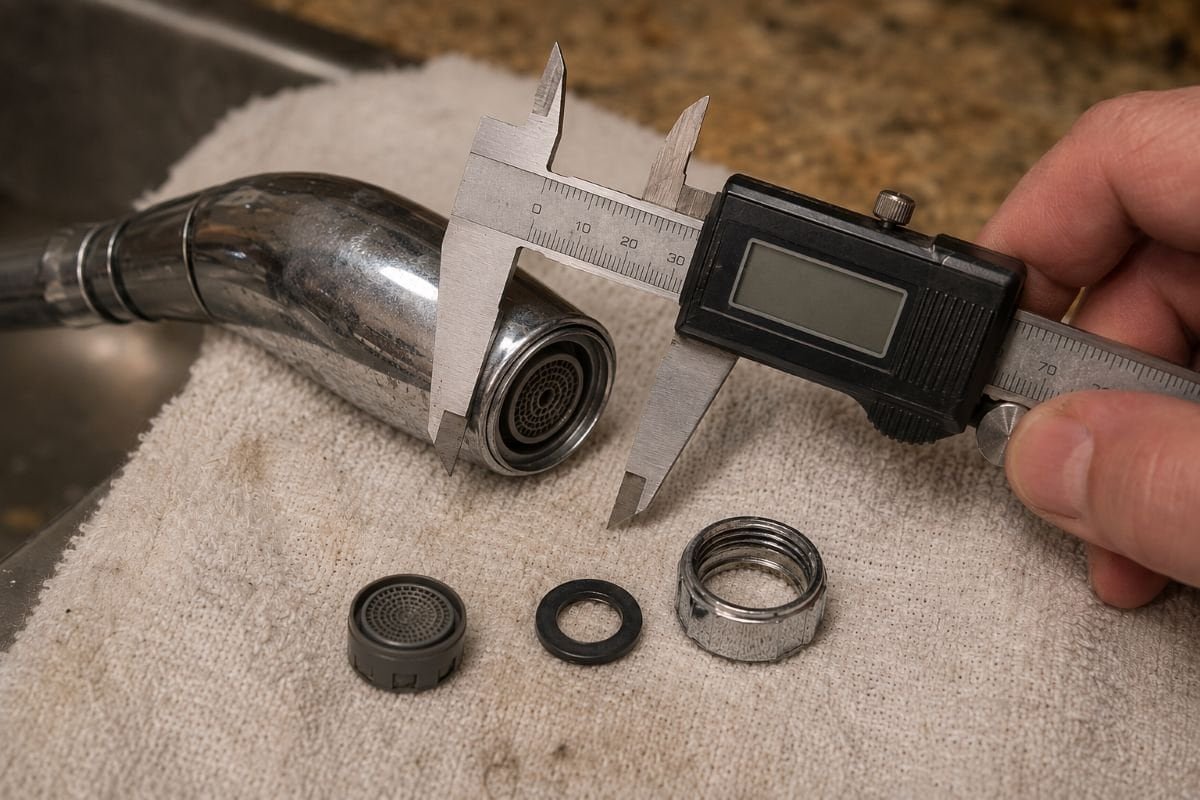

How to Measure Your Spray Head in Millimeters

If the spray face comes off, measure edge to edge across the base. Millimeters matter here because some pull-out faucet parts are close in size but not close enough to interchange.

If you cannot measure cleanly, take the old part with you. I have done that more than once for a client who had already thrown away the original insert. The replacement only fit after we compared it side by side.

A coin comparison can help as a rough reference, but it should not replace an actual measurement. Use it only to narrow down the possible size range before ordering online. For the final choice, confirm the thread size, thread type, gasket position, and overall insert diameter.

Male vs. Female Threads Explained

Inside threads need a male aerator. Outside threads need a female aerator. If you get that backward, the part may start, then bind up halfway through.

That is one of those mistakes that looks minor until you strip the fitting. Then the whole job gets bigger.

Tools You Need Before You Start

Usually I keep it simple: a towel, a small brush, a pair of needle-nose pliers or tweezers, and sometimes an aerator key or adjustable wrench depending on the head style.

For a recent kitchen in a small rental unit, the pull-out head used a recessed insert and a tight chrome ring. A soft cloth and the right key were enough. No force, no scratches, no drama.

If you are working with a pull-down kitchen faucet instead, I still start the same way: check the service point, check the thread pattern, and do not assume the two designs accept the same piece.

Before installing the new part, check whether it comes with a rubber washer or gasket. Most faucet aerators seal at the washer, not at the threads, so plumber’s tape is usually not needed. If the washer is missing, twisted, or seated on the wrong side of the insert, the aerator may leak even when the threads feel tight.

Installing and Maintaining Your Aerator

Once the right part is in hand, installation should feel calm and controlled. If you are fighting it, stop and check the fit again.

Removing the Old Spray Face or Existing Aerator

Turn the faucet handle off first. You usually do not need to shut off the supply valves under the sink unless you are removing the entire spray head or hose connection. If it is a threaded aerator, loosen it counterclockwise. If it is a drop-in type, release the face or insert without bending the housing. My guide on removing a faucet aerator walks you through each head style in more detail.

I always keep a towel under the sink area or in the basin. Tiny parts like washers and inserts have a habit of disappearing when they hit a shiny drain.

Installing the New Aerator or Adapter

Install the adapter or aerator by hand first. If it does not thread smoothly, back it out and realign it. A clean start should feel easy.

Once it seats properly, tighten it just enough to seal. Over-tightening is a common mistake, especially on plastic parts. It is better to have a snug fit than a cracked housing.

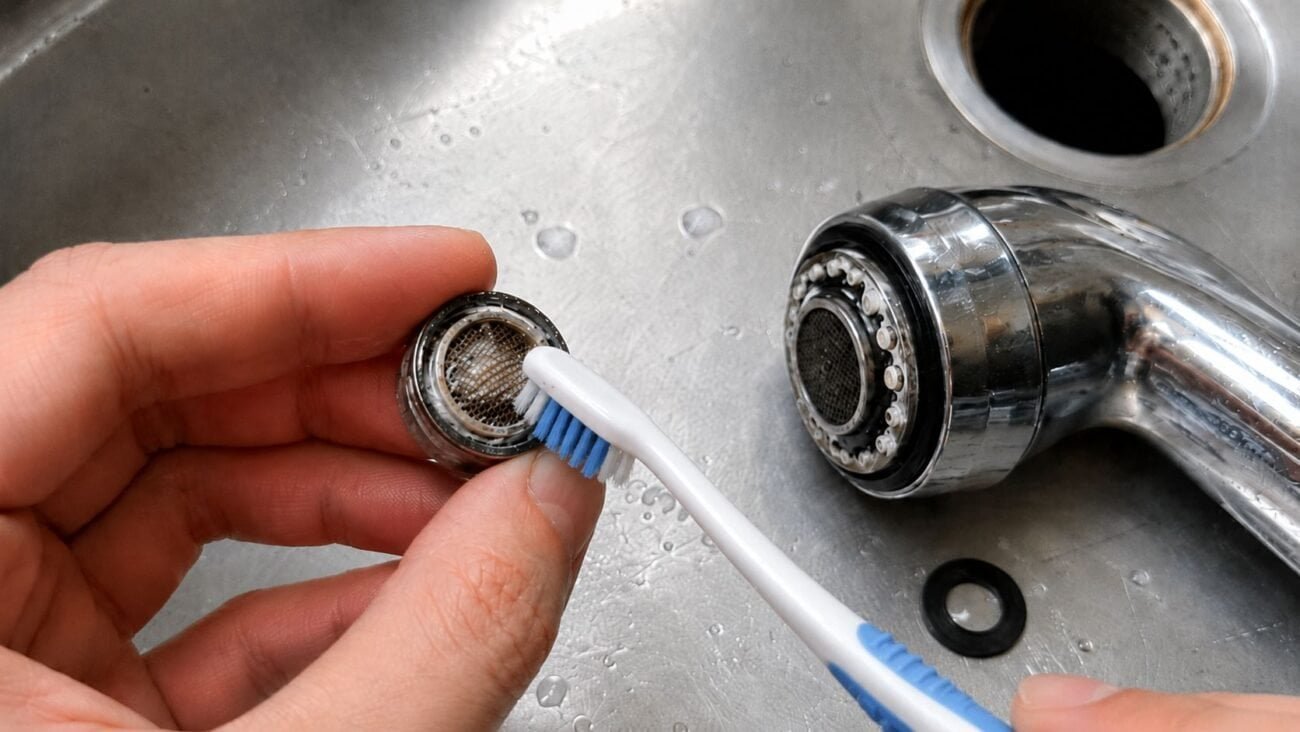

Leak Testing and Routine Maintenance

Run the water and check for drips around the edge of the spray head. If water leaks, remove the part and reseat it. Do not just crank harder and hope for the best.

For cleaning, I usually remove the aerator every few months and rinse debris out with a small brush. My guide on how to clean a faucet aerator covers the full process. Denver Water notes that aerators should be cleaned about every six months, especially after construction work that may affect the water supply.

If the stream starts to spray sideways, sputter, or lose pressure, that is usually a sign the aerator is clogged or the insert is worn. At that point, cleaning is worth trying first. If the part is damaged or the fit keeps loosening, replacement is the better move.

In practice, many “bad pressure” complaints come from a dirty insert rather than a true pressure problem. That is why the screen should be checked before replacing the faucet.

One time I worked on a kitchen where the homeowner thought the low-flow insert had ruined the sink. It had not. The real issue was a loose adapter ring and some grit in the head. Once I cleaned the screen and reseated the part, the spray pattern looked normal again.

The main lesson is simple: a pull-out faucet does not need a miracle part. It needs the right fit, a clean seat, and a quick check after installation.

FAQ

Q: Can I add an aerator to a pull-out faucet with no visible threads?

A: Yes, but usually not with a standard screw-on part. You will likely need a drop-in insert, an aerator adapter, or a spray head made for that connection style.

Q: What if my faucet came with a hidden or recessed aerator?

A: Use the right key or removal tool first. If you force it with pliers, you can damage the spray face.

Q: Which aerator type is best for a pull-out kitchen faucet?

A: The best type is the one that matches your spray head. For many pull-out faucets, that means a drop-in insert or a compatible adapter rather than a standard threaded aerator.

Q: How often should I clean or replace a pull-out faucet aerator?

A: Clean it about every six months, and sooner if the stream looks uneven or the faucet starts sputtering. Replace it if the insert is damaged or will not stay tight.
