Faucet Parts Diagram: Anatomy, Cartridge, Valve & Leaks

What Are the Main Parts of a Faucet?

Most faucets are built from the following core parts:

• Body (Main Housing): The “skeleton” that holds everything together.
• Cartridge / Valve Core: The heart of the faucet—controls switching, flow, and mixing.
• Handle(s): Controls cartridge movement.
• Spout / Outlet: Directs water into the sink or tub.
• Aerator / Filter Nozzle: Helps catch debris or improve water output.
• Mounting & Installation Kit: Hardware that secures the faucet to the counter or wall.

Depending on the model, you may also find:

Extra Functional Parts You Might See:

• Check Valve: Helps prevent backflow.
• Aerator: Mixes air into water for a softer stream and reduced splashing.
• Fixing Bolts, Brass Fixing Plate, Gaskets, Washers
• Mounting Brackets
• Supply Hoses

Different faucet designs use different combinations, but the cartridge is always the centerpiece.

Why the Faucet Cartridge Is the Most Important Internal Part

If the faucet body is the frame, the cartridge is the engine. It determines:

• How smooth the handle feels
• How accurately you can control temperature
• How well the faucet seals (drip-proof performance)
• Long-term reliability and lifespan

In many faucet quality problems, the cartridge is one of the first parts to check because it directly affects sealing, handle smoothness, water flow, and temperature control.

If you want a deeper, more technical breakdown of how different faucet cartridges work—and how to identify the correct replacement for your faucet—this faucet cartridge guide explains the main cartridge mechanisms, sizes, and compatibility considerations in detail.

When dealing with single handle kitchen faucets, the cartridge is responsible for balancing hot and cold water with a single lever. Replacing a worn-out cartridge can instantly restore the smooth operation of your handle.

Cartridge Types by Material

Cartridge materials affect sealing performance, operating smoothness, durability, and repair cost. Older faucets may still use rubber washer or spindle structures, while most modern kitchen and bathroom faucets now use ceramic cartridges.

• Rubber (Washer) Cartridges: Common in old screw-type cast-iron faucets; largely phased out.
• Spindle or Compression Cartridges
• Ceramic Cartridges
• Brass Cartridges
• Stainless Steel Ball Cartridges

Cartridge Types by Function

• Manual Cartridge: Standard on/off and mixing.
• Thermostatic Cartridge: Maintains stable output temperature.
• Magnetic Induction Cartridge: Used for sensor/motion faucets.

Why Ceramic Cartridges Dominate Modern Faucets

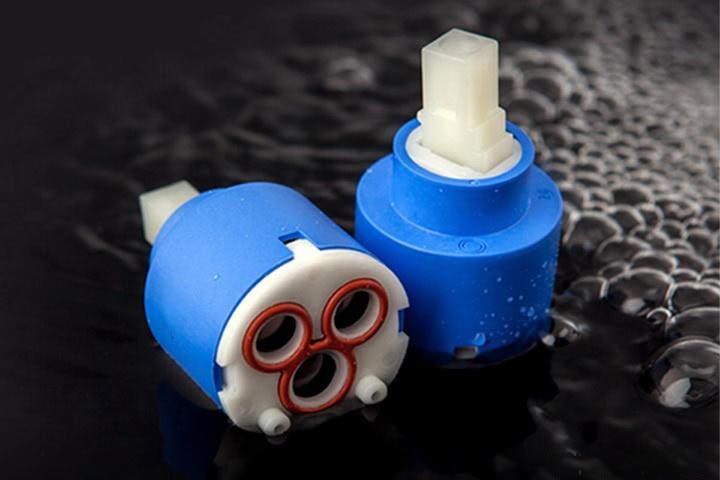

Ceramic cartridges are now the mainstream choice because they offer:

• Excellent sealing performance
• Stable physical properties
• Long service life

Many quality ceramic cartridges are designed for 300,000+ open/close cycles. If you turn your faucet on and off about 30 times per day, that can translate to 20+ years of use without dripping—which is exactly what most homeowners want.

Common Ceramic Cartridge Sizes

Ceramic cartridges often come in:
25mm, 35mm, 40mm, 42mm, and 47mm diameters.

Common Cartridge Brands Used in the Faucet Industry

You may see cartridges associated with brands such as:

• SEDAL (Spain)
• KEROX (Hungary)
• FLUESH (Germany)
• Hydroplast (Italy)
• NTK (Japan)

For thermostatic cartridges, one referenced name is Vernet (France).

(Your faucet’s performance depends not just on the brand name, but also on correct sizing, installation, and sealing.)

Faucet Body and Water Inlet Structure

Single-Inlet Faucets (Single Connection)

• Only one supply line
• Can be cold-only or hot-only

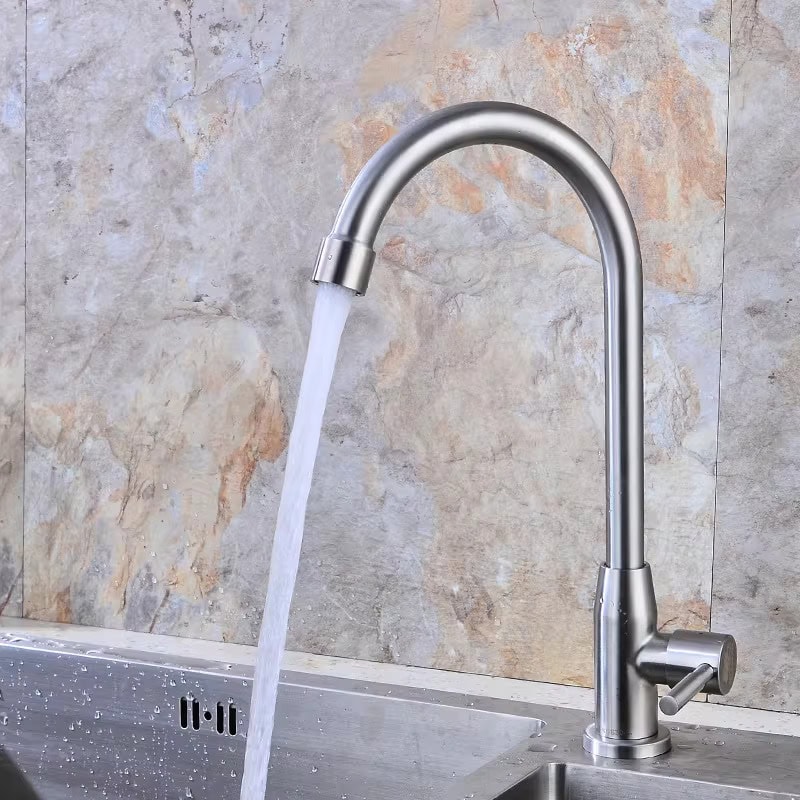

• Single-inlet faucets are usually used for cold-only faucets, drinking water faucets, utility sinks, or simple public washroom applications.

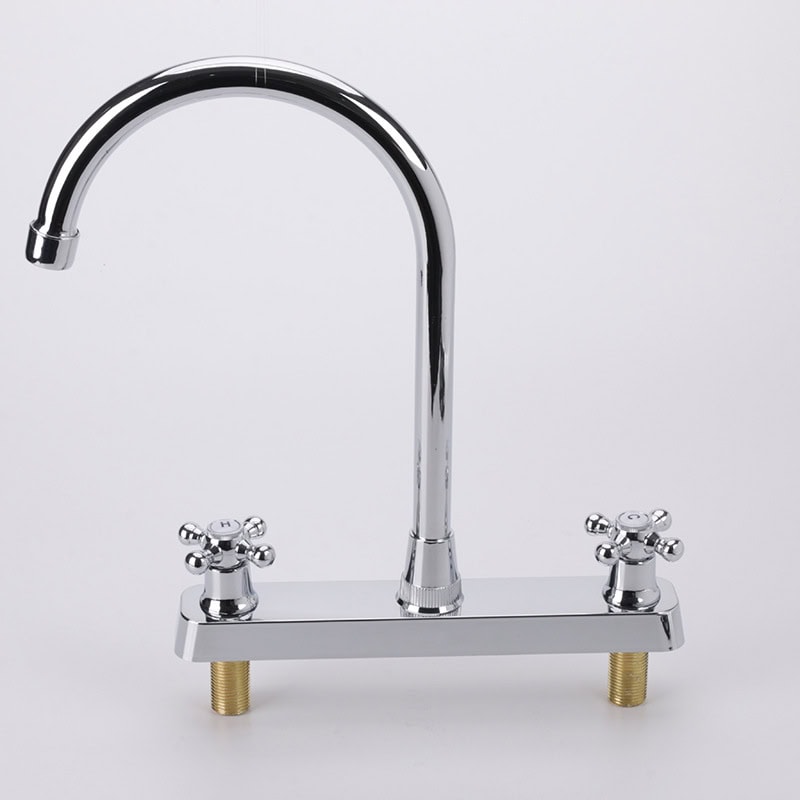

Dual-Inlet Faucets (Hot + Cold)

• Connects to two supply lines
• Typical for bathroom basins and kitchens with hot water supply

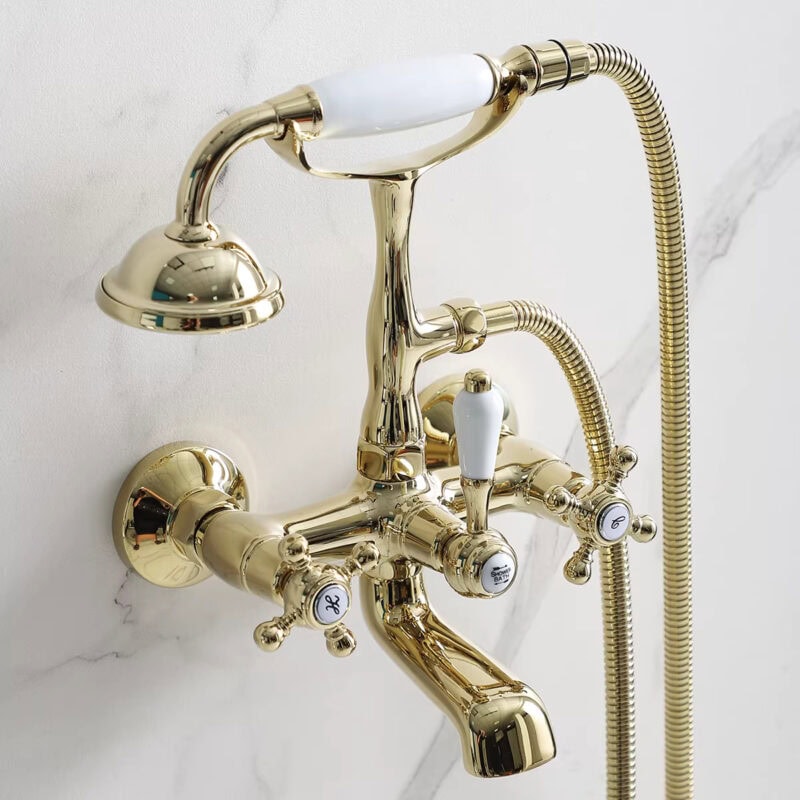

Triple-Inlet Faucets (Hot + Cold + Shower Outlet)

• Adds a connection for a shower head
• Often used for bathtubs

Single-Handle vs. Double-Handle

Single-handle faucets use one cartridge to control both water flow and temperature. Double-handle faucets use separate hot and cold controls, so the internal structure and installation layout are different.

For kitchen applications, the choice between single-handle and double-handle structures often depends on daily use habits, sink layout, and installation space. If you are comparing different kitchen faucet structures for sink projects, reviewing the faucet body, handle design, spout height, cartridge type, and supply hose layout can help you choose a more practical model.

While the cartridge controls the flow, the number of handles defines your user experience. If you’re undecided on which configuration is best for your home, check out our detailed comparison of [Single-Handle vs. Double-Handle Faucets] to find your perfect match.

Faucet Types by Opening Method

The opening method determines how the handle or sensor activates the internal valve. This affects user experience, water-saving performance, and maintenance requirements.

• Screw-Type: Needs many turns; older design
• Lever / Quarter-Turn: Often rotates ~90°
• Lift-Up: Lift handle upward to start water
• Push-Type
• Touch-Activated
• Sensor/Induction: Water flows when hands are detected

Delay-Closing Faucets

These keep water running for a few seconds after switching off—useful for rinsing soap or dirt from hands without re-touching the handle. Small feature, big quality-of-life improvement.

Faucet Types by Water Temperature Control

Cold-Only Faucets

Simple and cost-effective.

Hot/Cold Mixer Faucets

Blend hot and cold to reach your preferred temperature.

Thermostatic Faucets

Thermostatic faucets use a thermostatic cartridge plus a temperature-sensitive element. This element responds to temperature changes and adjusts internal flow paths so the output temperature stays stable—especially valuable for showers and family bathrooms.

Faucet Installation Styles and Structural Differences

For bathroom basins, the installation style usually determines the final faucet structure. Single-hole, centerset, widespread, and wall-mounted designs all require different body layouts, handle positions, and mounting hardware. When comparing bathroom basin faucet configurations, it is important to check the sink hole layout, countertop thickness, water inlet position, and maintenance space before choosing a model.

Your sink type, hole count, and countertop thickness often determine which installation style is best.

Faucet Finishes: What You’re Really Choosing

Finish isn’t just about looks—it affects durability, cleaning, and corrosion resistance.

The body of the faucet is often made of brass or stainless steel, but even the toughest materials can be compromised by mineral buildup or harsh cleaners. Learn more about how to protect your investment in our guide on [What Causes Bathroom Faucets to Corrode?].

Common Brass Faucet Finishes

• Chrome
• Ti-PVD
• Oil-Rubbed Bronze Styles (ORB)
• Painted / Coated Finishes (Painting)
• Porcelain-like Baking Finishes
• Brushed Nickel

Stainless Steel Faucet Finishes

• Satin / Brushed
• Polished

If you want “low stress” maintenance, chrome and brushed finishes are often easier to live with day to day.

When choosing a faucet body material (especially brass), it’s worth checking third-party compliance: NSF explains how many faucets are evaluated for lead and other impurities under NSF/ANSI/CAN 61.

Troubleshooting Faucet Leaks by Structure

Many people assume a leak means the cartridge is bad. In reality, cartridges don’t fail easily when the faucet is used correctly—so it’s smarter to diagnose based on where the water appears.

1) Water keeps flowing after the handle is “off”

Possible causes

• The retaining nut/cap is loose, so the cartridge can’t seal
• The rubber sealing ring at the cartridge base is deformed

Fix

• Remove handle + trim cap, tighten the retaining nut
• If needed, remove the cartridge, check the base seal ring, reset/reinstall

2) Water seeps around the outside of the cartridge

Likely cause

• Cartridge is loose or misaligned

Fix

• Remove the cartridge and reinstall properly (ensure correct seating)

3) Water leaks from the center of the cartridge area

Likely cause

• Cartridge damage

Fix

• Replace the cartridge with the correct size/spec

4) Water leaks from the bottom of the faucet (under the sink)

Likely cause

• O-ring on the inlet/supply connection is misinstalled or deformed

Fix

• Unscrew the hose, inspect the O-ring
• If not deformed: reinstall O-ring and supply pipe correctly
• If deformed: replace the O-ring

If you’re ever unsure, take a photo of the leak location (top, base, under-sink) and you’ll immediately narrow down the root cause.

FAQs

Q1: What is a deck plate used for?

A: If your sink has 2 or 3 holes but you want to install a single-hole faucet, a deck plate covers the extra holes for a clean, finished look.

Q2: My faucet is leaking—does that always mean the cartridge is broken?

A: Not always. Many leaks come from loose retaining nuts, misaligned cartridges, or O-ring issues. Diagnose based on where the water leaks, then fix accordingly (tighten, reinstall, or replace the relevant seal).

Q3: Are sensor faucets only single-temperature (cold-only)?

A: No. Sensor faucets come in two types:

• Single-temperature models
• Hot/cold models that allow temperature adjustment

Understanding faucet structure helps you choose the right faucet, identify common leak causes, and maintain the product more effectively. Key parts such as the cartridge, valve body, aerator, spout, gaskets, and supply hoses all affect how smoothly and reliably a faucet works.

For distributors, contractors, hotels, apartments, and bathroom projects, A-Torneira provides OEM faucet solutions with reliable cartridges, durable body materials, flexible finishes, and strict quality control.
