How to Replace a Shower Faucet Valve: A Pro’ s Guide (2026)

That midnight drip can drive you crazy. You tighten the handle, you wiggle it, you even “promise” you’ll fix it later… and it still drips!

I’ve been in the faucet industry for 10 years, and most shower “valve” problems are really cartridge (valve core) problems. So this guide focuses on replacing the cartridge. I’ll still cover rough-in valve body risks near the end.

---

Diagnosing the Problem: Is It Time for a Replacement?

Before you remove a single screw, I want you to be sure you’re fixing the right part. Otherwise you’ll do the work and still hear that drip.

Common Signs of a Failing Valve (Leaks, Drips, Temperature Swings, Low Pressure)

These are the signs I see most:

• Drips when the handle is OFF (worn seals inside the cartridge).
• Handle feels stiff or gritty (scale, worn parts, or both).
• Temperature swings when someone uses water elsewhere.
• Low flow only at the shower (could be cartridge—also check the showerhead for clogging).

If you’re seeing water but you’re not 100% sure where it’s coming from, I’d start with my guide on shower faucet leak symptoms — it helps you confirm whether the drip is from the cartridge, the spout, or a diverter issue: How to Fix a Leaky Shower Faucet?

Low flow can also be a clog issue, so I always check buildup first. If you’re troubleshooting flow in other fixtures too, this no-scratch guide helps: How to Remove a Faucet Aerator: The Ultimate No-Scratch Guide

If the whole house has weak pressure, the shower cartridge usually isn’t the main problem.

Identifying Your System: Pressure-Balancing vs. Thermostatic Valves

Most showers use one of these:

• Pressure-balancing valves: reduce sudden hot/cold shocks.
• Thermostatic valves: hold temperature more steadily.

Some systems also have a separate diverter (it switches outlets). A diverter can fail even when the mixing valve is fine.

Repair vs. Replace: When a Simple Fix Isn’t Enough

I’ll “repair” if it’s just a loose handle screw or a trim issue.

But if the valve keeps dripping, feels rough, or can’t hold steady temperature, replacing the cartridge is usually the clean win.

Safety matters too. A burns-unit review of domestic tap-water scalds shows the highest impact is often on young kids and older adults, and it supports safer outlet temperature control.

---

Preparation: Essential Tools and Safety Precautions

Skipping prep is how people get soaked, lose tiny clips, or damage tile. Let’s avoid all that.

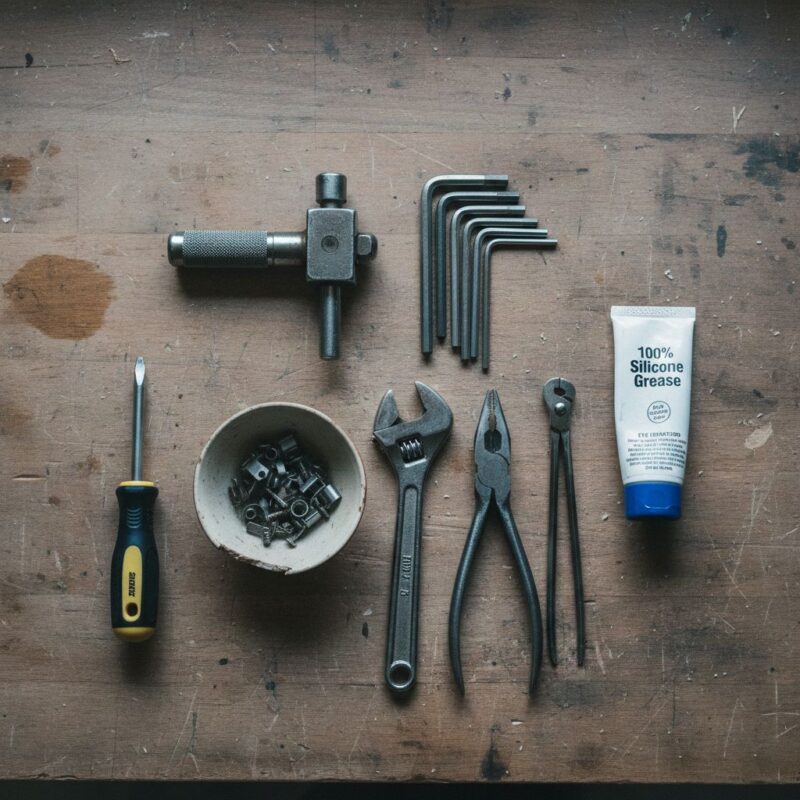

Must-Have Tools for the Job (Including cartridge pullers and hex keys)

Here’s what I keep close:

• Hex keys (Allen keys), Phillips + flat screwdriver
• Adjustable wrench (or correct socket)
• Needle-nose pliers (great for clips)
• Cartridge puller (often saves the day)
• Flashlight/headlamp, towels, painter’s tape
• 100% silicone grease for O-rings (if appropriate)

One strong warning: Avoid WD-40 or Vaseline. They’re petroleum-based and can swell or destroy rubber seals.

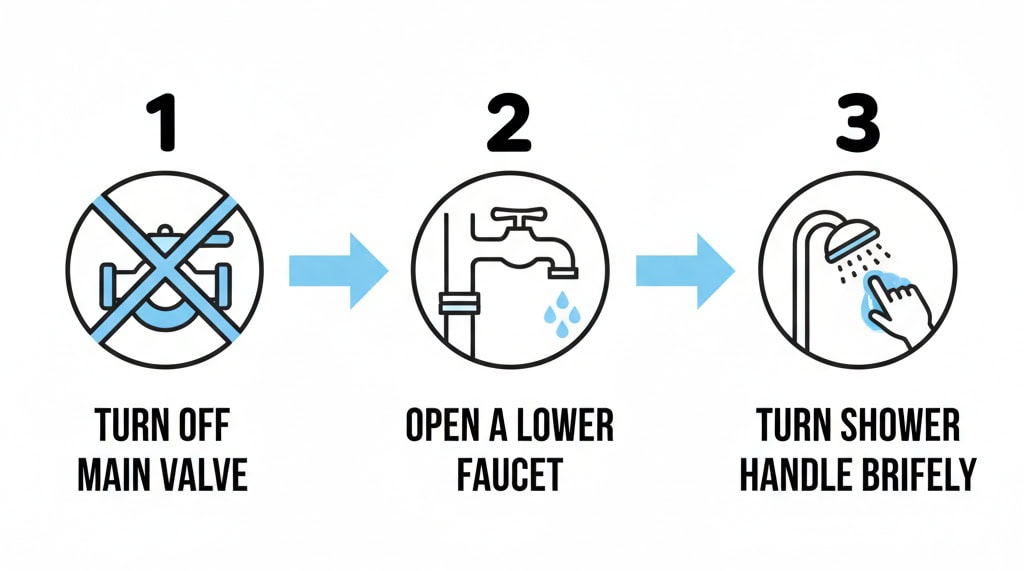

Locating Water Shut-Offs and Relieving Line Pressure (Crucial step to prevent spray)

Turn off the main water (or local stops if you have them).

Then relieve pressure: open a lower faucet for a moment, and turn the shower handle ON briefly. You want “nothing happens.” That’s the goal.

Protecting Your Shower Surface and Drains from Small Parts

Cover the drain with a towel. Clips love to bounce.

I also lay a towel on the tub floor so tools don’t chip enamel or tile.

If your shower valve is acting up, I often find the bathroom sink is not far behind—same water, same minerals. If you’re thinking of a coordinated refresh, browse our bathroom sink faucet styles at A-TORNEIRA.

---

Step-by-Step Professional Valve Replacement

This is the core work. Move slowly, take photos, and don’t force anything.

Removing the Handle, Trim, and Escutcheon Plate

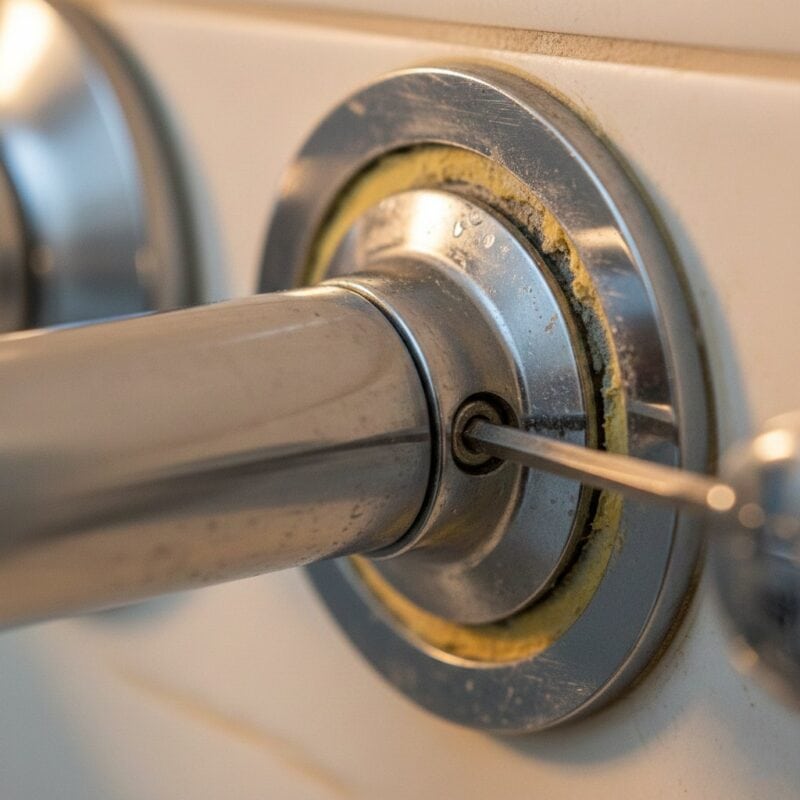

Find the handle set screw (often hidden under a cap or on the underside).

Loosen it with the correct hex key, then pull the handle straight off.

Remove the trim sleeve and the escutcheon (cover plate). If there’s old caulk, score the edge gently so you don’t chip grout.

If your handle won’t budge or you can’t find the set screw, don’t force it. I broke this down with photos and the common “hidden screw” tricks here: remove a faucet handle

Real-life scene: I’ve done this at sunrise with a headlamp on, trying not to wake a sleeping baby in the next room. Slow hands beat “fast and angry” every time.

Extracting the Cartridge/Valve Core: Managing Retainer Clips and Specialized Pullers

Now you’ll see the cartridge and its retainer.

Common retainers:

• A U-shaped clip you pull straight out
• A bonnet nut you unscrew

Before you touch anything, take a clear photo of the cartridge orientation. I also mark “TOP” with tape.

Remove the clip or nut carefully, and keep parts in a bowl.

If the cartridge won’t come out easily, use a cartridge puller. Pull straight—don’t pry against the valve body.

Want a faster checklist-style version (with the common cartridge shapes and removal tips)? Here’s my quick guide on cartridge replacement steps: How to Replace a Faucet Cartridge in 15 Minutes

Cleaning the Internal Valve Body and Applying Silicone Lubricant

With the old cartridge out, wipe the valve body clean.

Use a soft brush for scale, and remove any grit. Grit can cut new seals.

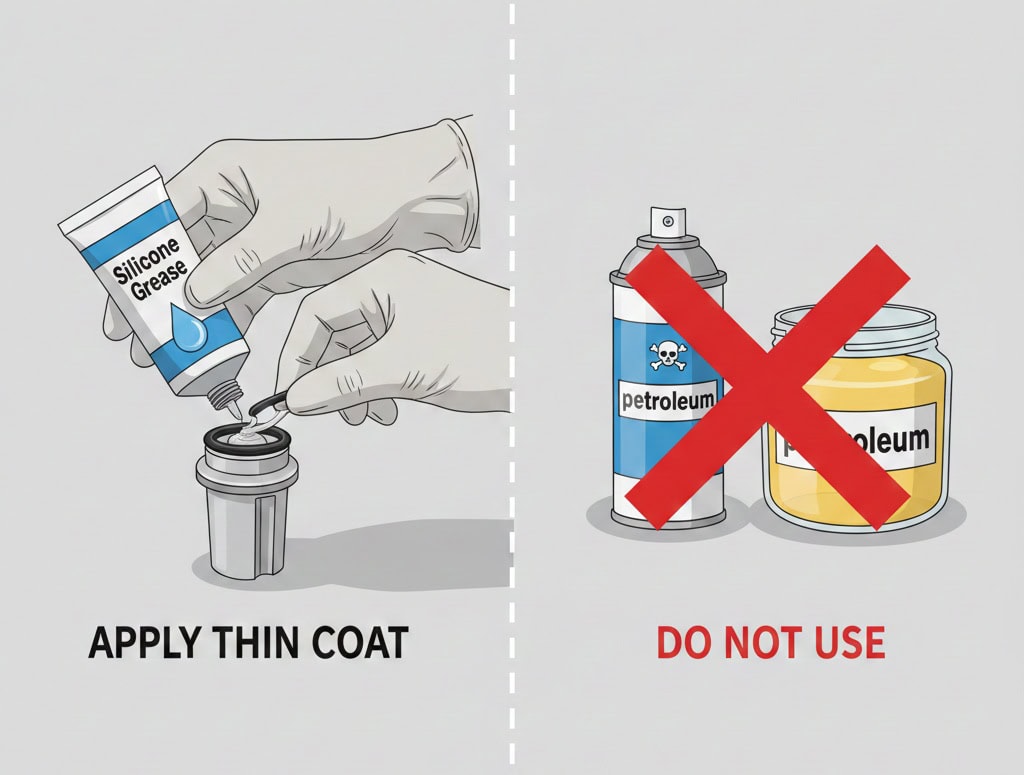

Apply a thin film of silicone grease to the new O-rings (unless the part is labeled “pre-lubed”). Thin means shiny, not dripping.

As a product tester, I also think about what’s in the water you breathe in the steam. One faucet study found that after 24 hours of stagnation, the first 100 mL had 14–220× higher total cell counts, and chlorine dropped—then improved with flushing.

Flushing—do it safely:
If you flush with the cartridge removed, water can blast out and spray into the wall cavity.

If you choose to flush, do it like this: have a helper at the main shutoff open it very slowly, while you hold a thick towel over the valve opening like a shield. Flush briefly, then shut it back down.

If you’re alone, I usually skip open-body flushing and instead flush after the new cartridge is seated (safer).

Installing the New Cartridge and Calibrating the Rotational Limit Stop

Seat the new cartridge in the same orientation as the old one. If it doesn’t sit flat, stop and re-check alignment.

Reinstall the retainer clip or bonnet nut. Snug is good. Over-tight can cause damage.

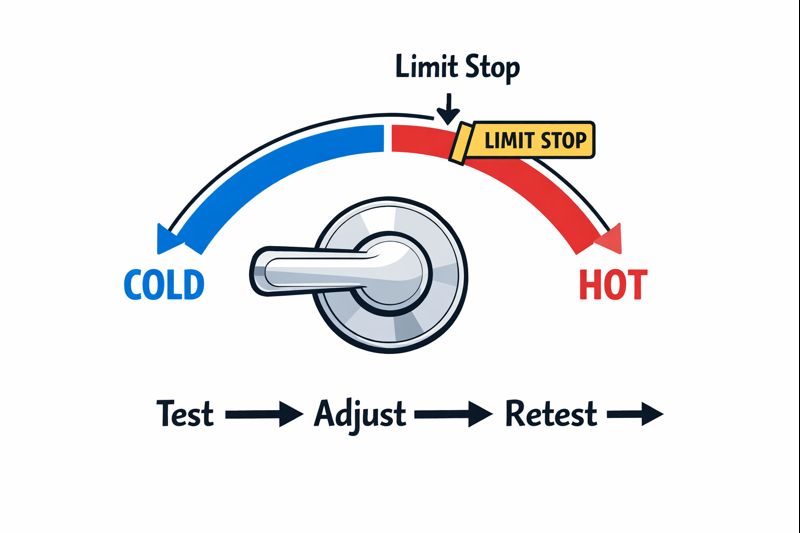

Now set the rotational limit stop (anti-scald stop). This limits how far the handle turns toward hot.

I start a bit cooler, test, then adjust warmer if needed.

A randomized trial found thermostatic mixing valves (plus safety advice) reduced bath hot tap temperature and were acceptable to families—good support for temperature controls at home.

Restoration and Critical Testing Phase (Leaks, Temperature Calibration, and Pressure Check)

This is where pros separate themselves from “it kinda works.”

Turn water on slowly and watch the valve area before reinstalling all trim.

Check for leaks around the cartridge and retainer. Then run water at normal flow.

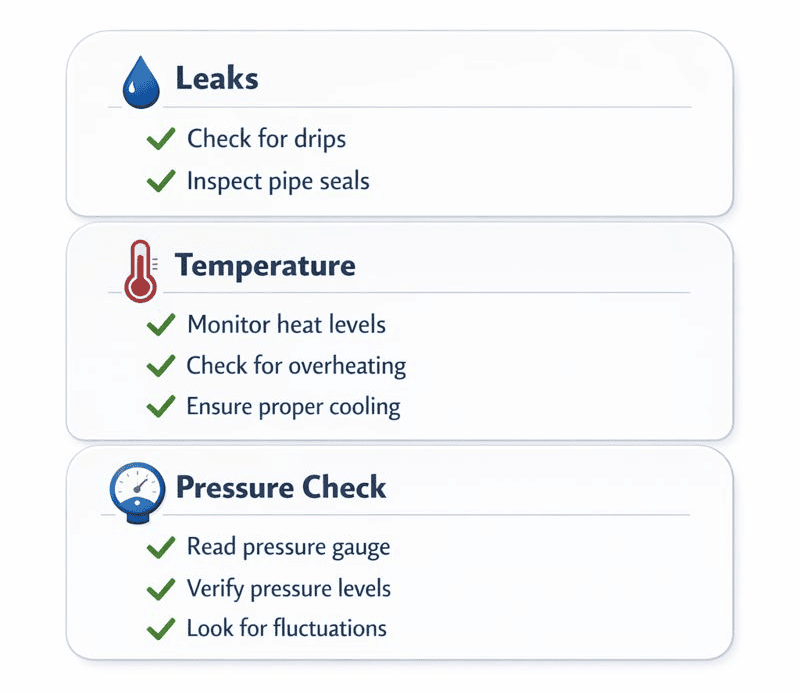

My testing routine:

• Full flow, then half flow. Any weird noises? Any drip after shutoff?
• Hot-to-cold sweep: smooth or jumpy?
• Pressure check: run a nearby faucet or flush a toilet. Does the shower temp swing hard?

Quick flush note (safer method): once the new cartridge is seated and retained, run water briefly to clear small debris.

I learned this the wet way—opened a main valve too fast once, and towels went flying. Now I always go slow, and I block openings when they’re exposed.

When everything is stable and dry, reinstall the escutcheon, handle, and caps.

---

Troubleshooting Common Installation Challenges

Even a good plan can hit snags. Here’s how I handle the common ones.

Dealing with a Stuck or Corroded Cartridge/Valve Core

If it’s stuck, don’t pry on the valve body.

Use a puller, work slowly, and pull straight.

If the cartridge starts deforming, or you suspect moisture behind the wall, stop and call a pro.

Correcting Inverted Hot and Cold Water Lines

Hot and cold reversed? It happens.

Here’s the insider fix: many modern pressure-balancing cartridges can be corrected by rotating the cartridge 180° and reinstalling it.

After you rotate it, retest temperature direction and reset your rotational limit stop.

If your system still can’t be corrected at the cartridge/trim level, that’s when I bring in a licensed plumber.

Addressing Shower Diverter Valve Repair and Replacement

If temperature is fine but water won’t fully switch outlets, the diverter may be worn.

Clues:

• Tub spout keeps running during “shower” mode
• Diverter handle feels loose or won’t hold position

Some diverters use a small cartridge too. Others are in the tub spout. Identify where yours is before buying parts.

If your diverter issues keep coming back (especially on older setups), it may be time to upgrade the whole tub outlet. You can see A-TORNEIRA options under bathtub faucet replacements.

---

Expert Advice: DIY or Professional Replacement?

I’m a DIY fan. I’m also a “don’t open the wall unless you must” fan.

The Risks of Full Rough-in Valve Body Replacement Behind the Wall

Full rough-in replacement can mean cutting pipe, joining fittings, and repairing waterproofing and tile.

That’s often a bigger job than people expect. If you’re not set up for it, don’t force it.

And if your project ends up needing behind-the-wall work, many homeowners use that moment to switch to a cleaner look. A-TORNEIRA’s wall-mounted tub faucet options are worth a look if you’re already planning wall access.

Long-term Maintenance Tips to Extend Valve Life

A few habits help:

• Clean the showerhead so grit doesn’t travel back into the valve.
• After travel, run water a bit before your first shower.
• If you have hard water, scale control helps cartridges last longer.

When I test and review faucet setups for A-TORNEIRA, I always favor designs that are easy to service. Future-you will thank you.

One simple way to cut down grime around handles is to stop touching them so much. If you’re upgrading other fixtures while you’re at it, check A-TORNEIRA’s hands-free touchless faucet collection.

When to Call a Licensed Professional Plumber

Call a pro if:

• You can’t fully shut off the water
• You suspect a leak behind the wall
• The cartridge is seized and pulling starts to damage parts
• The valve body must be replaced (especially with solder/press/crimp work)
